Jeep Wrangler Rubicon (Job Log)

Water washed.

The gate was removed and sorted by color to be painted.

The body was painted black on the inner surface of the body to prevent light from penetrating after scratching the panel line deeply and cleaning the surface. (Vallejo Mecha Primer)

I didn't intend to remove the protrusion, but I removed it because I thought it would bother me.

The antenna support on the side was also removed.

I measured the size beforehand in case I lost it.

Then I drilled a hole and inserted an insect pin.

Body part: White surfacer
Wheel: Silver
Engine parts: Flat aluminum

Body part: Gloss white
Wheel: Tamiya enamel X-18 (not XF-1)

And wiped with the 'Finish Master'.

Done.
The rim edge of the actual car is also silver, but I only wiped the inner star(?).

I planned to paint the body in 4 different colors, so I did the first masking.

1st. Done.

I masked once more and painted the next color.

Finally, mask once more and paint in black and It's done.

Need to fix.

Need to fix.

If the parts are painted separately, there may be a difference in color, so because the door was temporarily fixed on the body and painted, the paint penetrated through the gaps and the marked part was messy.
There is a possibility that the car will be completed with the door removed, so it is better to fix it neatly.

Masking again to cover it with white...
Since this next process will be coated with clear, decals were also applied in advance.

Done.
The marked hinge can be solved by lightly painting it with a brush.

Clear coated. (twice)

I need to fix it...

Cleanup.

Final clear coated.

The calipers were painted with gold markers.

After the sheets are painted 'Chrome Orange'...

Masking...

Both sides of the headrest were painted with Tamiya markers(XF-1).

I applied 'GSI Smooth Clear' to adjust the overall gloss.

Painted with colorful clear.

Painted with 'Black Surfacer'(Flat Black).

No holes in the muffler end, so I have to drill them.

Left: Black
Left Middle : Metallic gray
Right : Silver
and I used 'Tamiya Weathering Master'

I painted Musou Black(this is like Vantablack) in hole of muffler end.

Sandpapering and Rough compounded.

Polishing done. (Tamiya fine compound)
I usually like polishing, but this time, for some reason, polishing was not enjoyable.
So I just polished it up and finished it.

Painted with hand brush.
Vallejo mecha black primer, silver(063)

Easy detail-up for dashboard with PET package.

Pour woodworking glue diluted with water between the gaps.

Now I started assembling it according to the instructions.

But assembly was not easy.

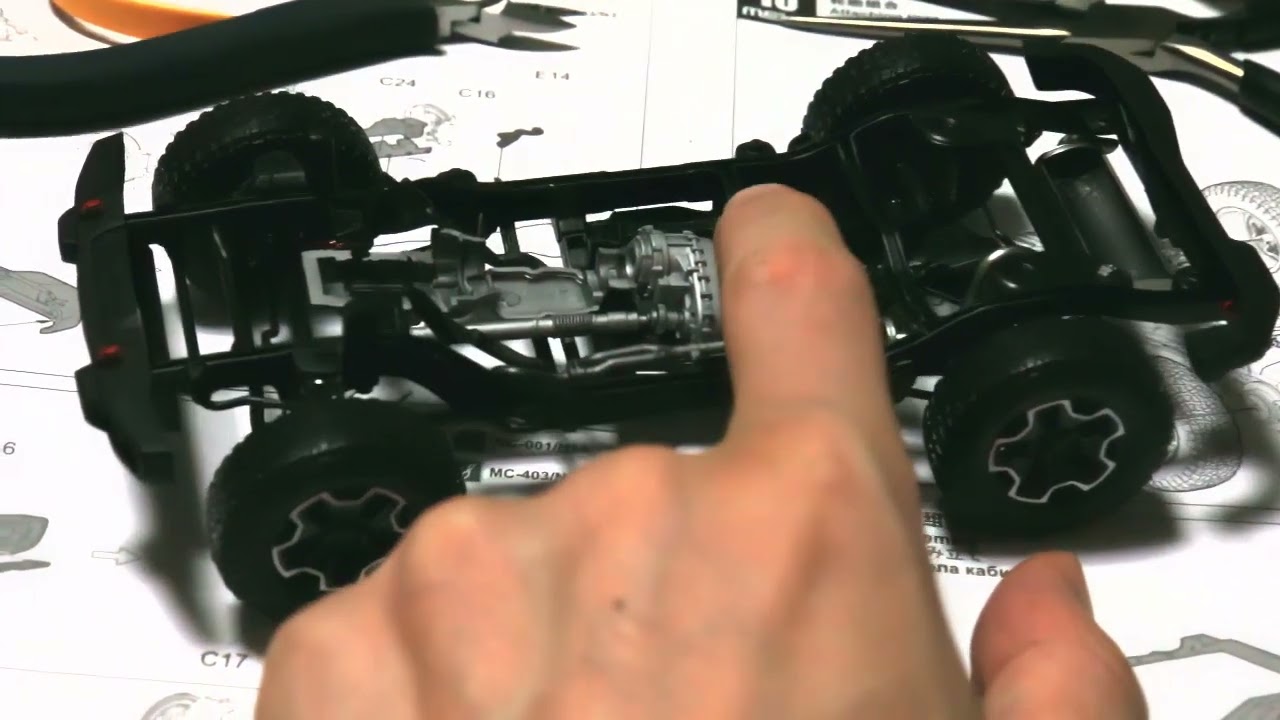

Lower body done.
This link is movable suspension work. Youtube Video

Interior done.

Interior done.

Each fender consists of two pieces, so it is better to assemble it firmly in advance.

Attach the fender to the side plate, and stick the silver foil sticker to the marked.

Hi BMO~

The side plates were attached to the interior.
For future assembly convenience, it is necessary to secure it very firmly with time to spare.

In the process of attaching the roll cage and windshield, parts such as fenders eventually fell off.

Rear done.

It was stand up to adhesive the wiper. surprisingly It very well stay in this state.

Headlight : Liquid chrome marker.
Winker : Silver foil sticker.

Attached.

After stretching the black runner, cut it at an angle to make a windshield washer fluid nozzle and attach it.

Finally, After combining with the lower body, put on the antenna and various covers to complete the work.
After combining with the lower body, put on the antenna and various covers to complete the work.

But, it was impossible to assemble it densely by attaching it like a temporary assembly. Even the front passenger door interfered with the B-pillar, so the door could not be attached.

Removed all.

Good~

Finished.

Finished.
