The very first T-6 Texan (NA-16 prototype X-2080)

1
October 19, 2025
The prototype was equipped with smaller R-975 (see picture 4). The most build variants were equipped with the R-1340 engine (see picture 5).
2
October 19, 2025
3
October 19, 2025
5 minutes later than pic 2.
4
October 19, 2025
5
October 19, 2025
6
October 19, 2025
2000 I was almost done with the tail. Today I invested 1 hour to sand it clean.
7
October 19, 2025
8
October 19, 2025
2000 also the wing was almost completely finished. You can see the rivets not as dots but as strokes (failed 1st riveting attempt of 2000).
9
October 19, 2025
10
October 19, 2025
11
October 19, 2025
12
October 19, 2025
13
October 19, 2025
I'm going to have to work on this. For example, the roll bar must go
14
October 19, 2025
15
October 19, 2025
16
October 21, 2025
Rudder reshaped. Without trim tab, in comparison with production machines.
17
October 21, 2025
18
October 21, 2025
As usual I used no putty but plastic and CA for filling gaps. Attachment via 2x 0,6 mm wire.
19
October 21, 2025
Before this task I had a bit of respect, because the hull in the rear area becomes conically narrower.
20
October 21, 2025
Overall, it worked very well. I wrapped the piece of plastic around a round stick and preformed it in a pot with hot water.
21
October 21, 2025
22
October 23, 2025
One of the complicated tasks in this project. The engine (R-975) has a smaller diameter than the R-1340, so that the front fuselage looks completely different in the area of the front edge of the wing.
23
October 23, 2025
I will carve the section at the front out of Ureol.
24
October 23, 2025
25
October 23, 2025
Plastic and CA.
26
October 23, 2025
Sanding template (oval); fuselage - side. In the middle ureol 10 mm thick.
27
October 23, 2025
Very forward section of the fuselage prepared for carving. Sanding template (round); engine - side
28
October 23, 2025
About a half of hour later. Engine - side.
29
October 23, 2025
Fuselage - side.
30
October 23, 2025
At next I will seal the rough surface with 1200 leveler of Mr. Color.
31
October 24, 2025
The last big hurdle of the project is taken: the fuselage section in front of the engine. It was surprisingly fast to model / carve the part between the two templates.
Today I airbrushed two layers Surfacer 1200 from Mr. Color, filled/sealed the fine holes of the ureol and I am very satisfied with the result.
32
October 24, 2025
Would they have recognized in this picture that it was the grandfather of the Texan?🙂
33
October 30, 2025
I’m waiting for the Wright R-975 of Dekno Models.
34
October 30, 2025
35
October 30, 2025
36
October 30, 2025
37
October 30, 2025
38
October 30, 2025
39
October 31, 2025

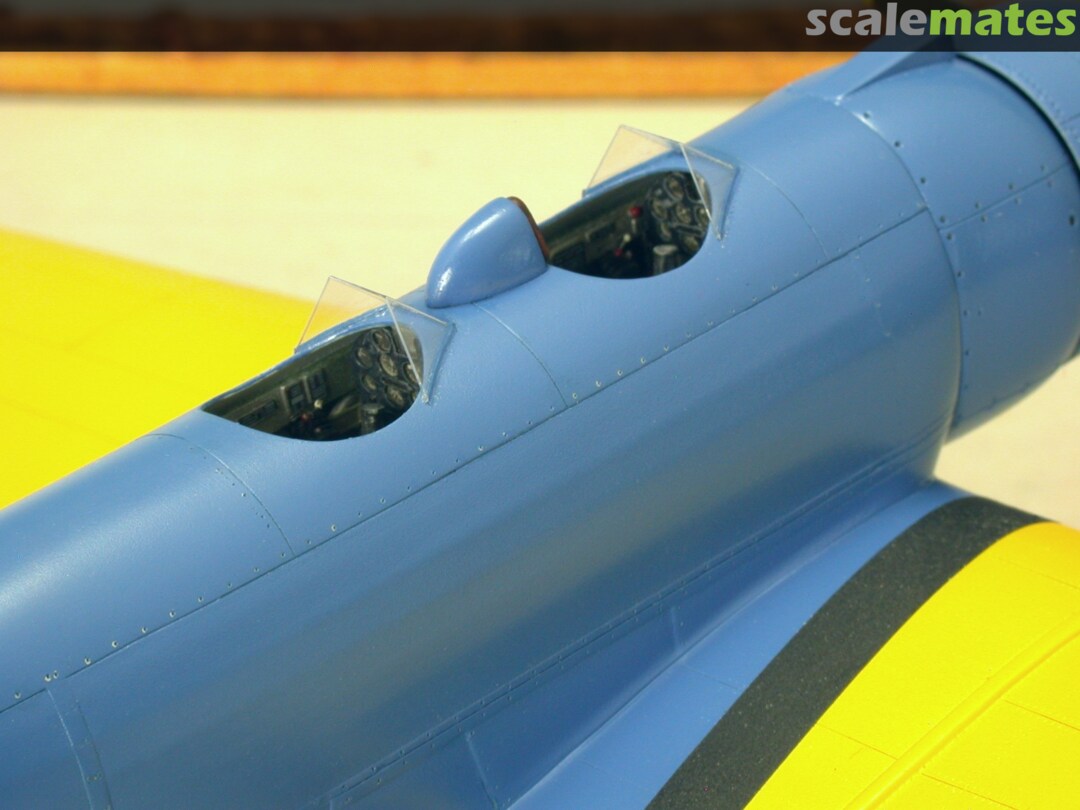

The work preparation was worth it. The dry fit of the templates for transparent parts fit exactly. I glued the parts with Future. Amazing stuff!
40
October 31, 2025
The elevators are from Monogram, the rest are the vacuum components from Sierra. I think you can't see that the model was made from a vacu kit 🙂🙂
41
October 31, 2025
42
October 31, 2025
43
October 31, 2025
44
October 31, 2025
45
November 5, 2025
The engine has exactly the right diameter. Regardless of this, I had to shorten the cylinder heads a bit by 0.4 mm, approximately, so that the engine fits into the too thick cowling. I have sanded these thinner anyway, but that was not enough.
46
November 5, 2025
47
November 5, 2025
48
November 5, 2025
49
November 5, 2025
As usual I used classic plastic glue for installation of the cowling (for better adjust than with CA)
50
November 5, 2025
51
November 6, 2025
52
November 6, 2025
53
November 6, 2025
54
November 6, 2025
55
November 6, 2025
56
November 6, 2025
57
November 6, 2025
58
November 6, 2025
59
November 6, 2025
60
November 6, 2025
61
November 6, 2025
62
November 6, 2025
63
November 6, 2025

Commentaires

51 19 October 2025, 12:26

Ben M
👁️👁️

19 October 2025, 13:06

Alex K
"The Granddaddy of them all"... That would be very interesting... 👍

2 19 October 2025, 13:23

Hanno Kleinecke
The yellow-wing story cuntinues, checking in !

19 October 2025, 20:41

H.- J. Haag
👀👍

20 October 2025, 14:37

Erik Leijdens
Another stunning model in the making! Great choice of subject! Eager to see your progress

21 October 2025, 10:01

Bernhard Schrock Auteur
Thx Mates.
Flat decking of the fuselage completed: before this task I had a bit of respect, because the hull in the rear area becomes conically narrower.

21 October 2025, 16:14

Kenneth
Wahnsinn 😳 Following…

21 October 2025, 16:39

Tom Spiegelberg
Cooles Projekt! Ich schau Dir gerne dabei zu. What about Popcorn?

21 October 2025, 18:04

Bernhard Schrock Auteur
Tom: sorry, vergessen. Jetzt aber! 🙂🙂

21 October 2025, 18:16

Robert Podkoński
A new Talent Show from Bernhard? I will watch this for sure!

1 21 October 2025, 19:32

Bob Hall
That is the best model of a bag of popcorn, I've ever seen ! The Betty Ford "Weathering" cups gives it pzazz 🤘😎🤘 ! Oh and the Texan thing if kinda neat too ! 🤣🤣🤣🤣🤣👍👍

1 22 October 2025, 00:35

Rui D
That bag of popcorn kit is definitely a high parts count kit

1 22 October 2025, 02:33

Bernhard Schrock Auteur
😄

22 October 2025, 04:05

Augie
certainly watching this

22 October 2025, 08:05

Bernhard Schrock Auteur
The last big hurdle of the project is taken: the fuselage section in front of the engine. It was surprisingly fast to model / carve the part between the two templates.
Today I airbrushed two layers Surfacer 1200 from Mister Color, filled/sealed the fine holes of the ureol and I am very satisfied with the result.

24 October 2025, 17:29

Alec K
Super! Following along 👍

24 October 2025, 17:33

Guy Rump
Looking good, following. 👍

30 October 2025, 19:14

Spanjaard
following!

30 October 2025, 20:50

Alec K
What progress! Your scratched nose turned out superb 👍 👍 👍

31 October 2025, 00:12

Bernhard Schrock Auteur
Thank you Mates.
Except for the engine, I'm done and now waiting for the package from Decno in Spain.

Everything went amazingly fast! I am very satisfied with the result.
Only the elevators are from Monogram, the rest are the vacuum components from Sierra. I think you can't see that the model was made from a vacu kit 🙂🙂

1 31 October 2025, 19:37

Zbynek Honzik
Taking a seat. Beautiful work! 👏

31 October 2025, 21:16

Geoff Murphy
Beautiful work!

4 November 2025, 13:43

Guy Rump
Lovely job! 👍

6 November 2025, 14:03

Robert Podkoński
Simply beautiful!

6 November 2025, 18:14

Alec K
Outstanding work 👍

6 November 2025, 18:36

Hanno Kleinecke
Rarely seen anywhere, hard to believe that this was the AT-6's predecessor….. Beautiful work and photography,I thought the teaser pic was just another original photo !😳👍

1 30 November 2025, 12:41

Erik Leijdens
Amazing craftsmanship as always! Impressive scratch building Bernhard. And a very interesting subject.

1 December 2025, 17:42
